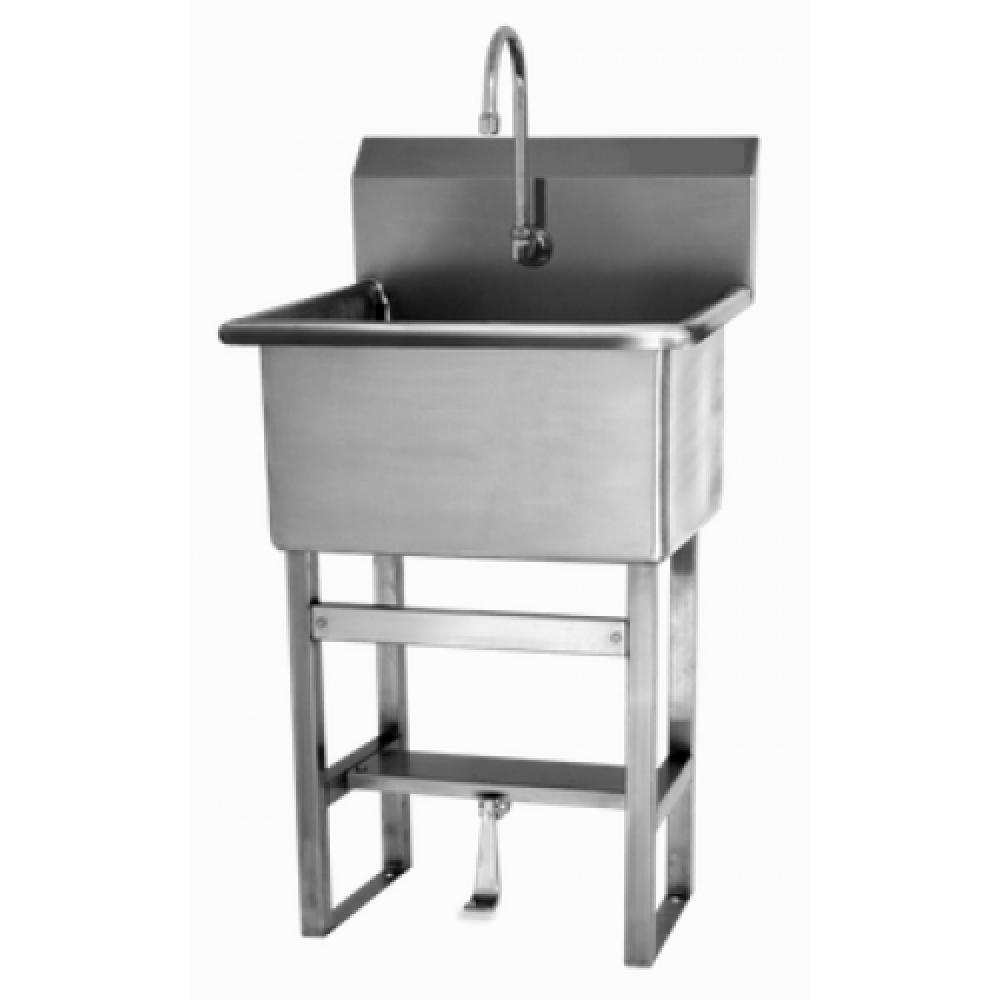

Floor Mount Utility Sink with Single Foot Pedal

Floor Mount Utility Sink with Single Foot Pedal

Product Code: 3169
Availability: On Order

Product Description

Single Foot Paddle Floor Mount Sink

Seamless welded construction of 14 gauge type 304 stainless steel with a 1-1/2” roll rim on front and sides. Exposed surfaces has a uniformed satin finish.

Includes:

(1) Floor mount sink
(1) Leg assembly set
(4) Washers and nuts for connection sink to leg assembly set
(1) Single foot pedal valves (bottom mount) with mounting nuts
(1) Swivel gooseneck spout with aerator
(1) Strainer assembly with basket
(1) Connecting tubes for valve to spout connection
(2) Fittings, brass, 0.375” male compression and 0.375” male NPT
(1) Mixing check valve

Outside Dimensions 25″ x 19-1/2″ x 46-1/2″ High
Inside Bowl Size 22″ x 16″ x 10-1/2″ Deep
Back Splash height 9″
Water Activation Single Foot Pedal Valve
Flow Rate 2 gpm
Inlet Connections 3/8″ Male Compression
Drain Opening 3-1/4″
Finish Satin
Strainer Basket Type
Wall Mounting Bracket1/4″ dia. mounting holes
